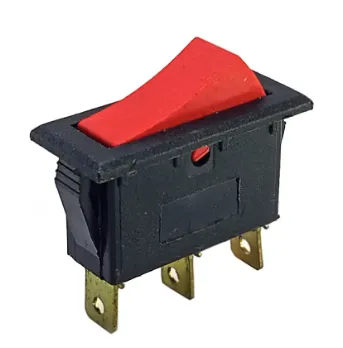

This Rocker switch works on SPDT (Single Pole Double Throw) mode. This switch is rated for a load of 10A 250V. The contact resistance of the switch is ≤ 20 MΩ and the insulation resistance of the switch is ≥100MΩ. SPDT Round Rocker switches have two positions which are ON and OFF. To make identification of the position of the button easy ON and OFF positions are clearly marked on the button as I and O respectively. Dimensions are L 17mm x W 11m x H 15m.
Specifications
| Voltage and Current Rating | Max 10A at 250VAC |
| Switching Mode | ON-OFF |
| Structure | SPDT |
| Colour | Red |
| Contact Resistance | ≤ 20 mΩ |
| Insulation Resistance | ≥100MΩ |
| Number of Pins | 3 |
| Dimension (LxWxH) | 17x11x15mm |
| Country of Origin | China |
